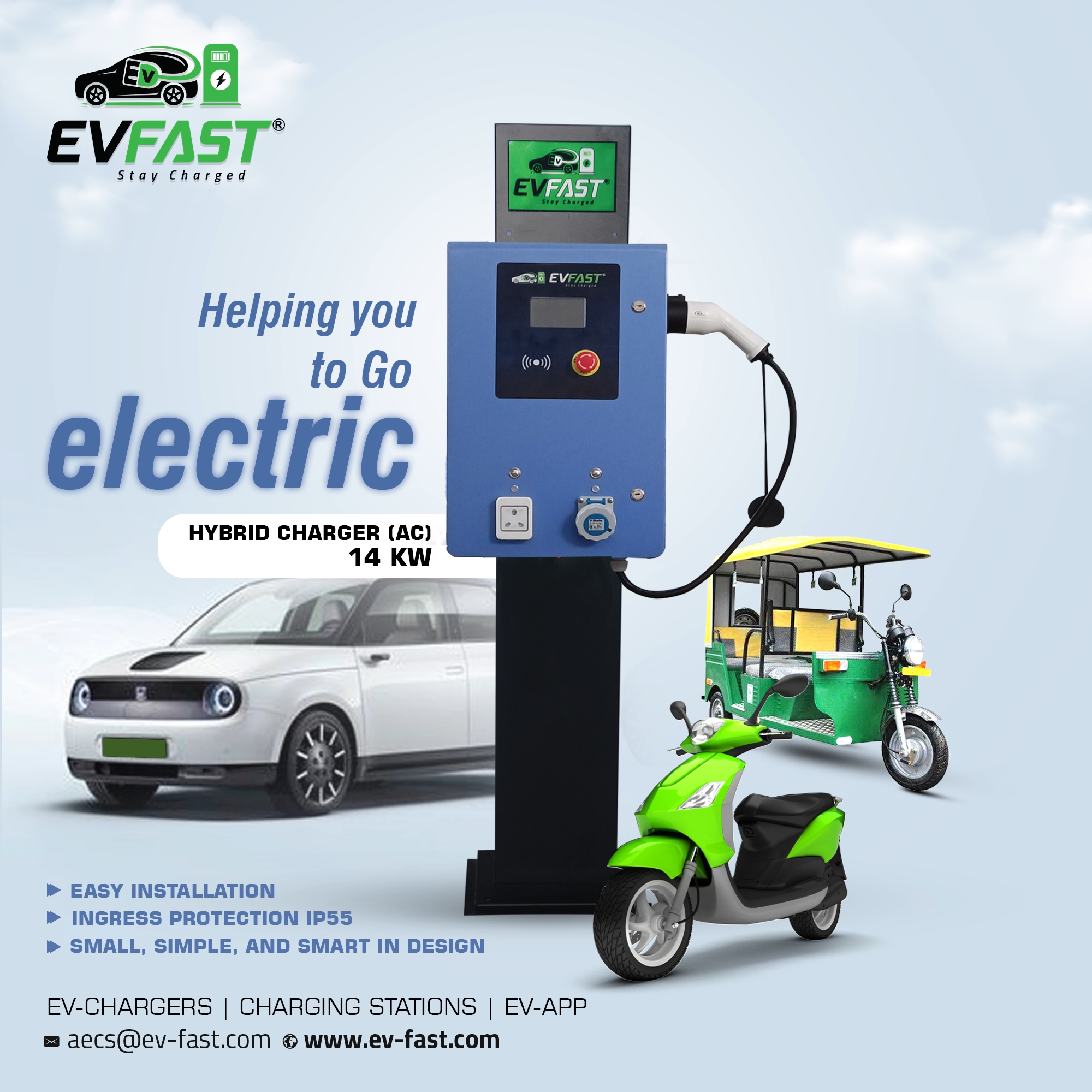

14kW Hybrid Charger
Category: AC Chargers
₹39,999
₹51,499 22% off
Inclusive of GST (5%)
Shipping charges extra
Sleek wall-mounted premium design
Tough and Long-Lasting
Emergency stop switch for safety
Excellent After-Sales Service
The EVFAST 14 kW HYBRID AC EV Charger with three outputs is a versatile and high-performance charging solution designed to support multiple EV charging interfaces from a single unit. With a combined output capacity of 14 kW, the charger enables simultaneous charging of different types of electric vehicles, making it ideal for shared and mixed-use charging environments.
This charger features a unique mixed-output configuration, ensuring compatibility with a wide range of EVs—from vehicles such as 2 wheelers and 3 wheelers using portable chargers to modern electric cars requiring faster Type-2 AC charging.
General
| Feature | Specification |
| Model | EVFAST Hybrid Charger AC 14kW |
| Rated Capacity | 14 kW |
Input Parameters
| Feature | Specification |
| Input Supply | Three Phase AC |
| Input Voltage | 415 VAC (Operating Range: 380–440 VAC) |
| Input Frequency | 50 Hz ±1 Hz |
| Total Harmonic Distortion (THD) | ≤ 5% of nominal voltage |
| Power Factor | ≥ 0.99 at full load |
| Wiring Configuration | L1, L2, L3, Neutral (N), Protective Earth (PE) |
Output Parameters
| Feature | Specification |
| Output Voltage | 230 VAC ±15% per output |
| Number of Outputs / Connectors | 3 |
| Charging Power Distribution | 3.3 kW × 2 and 7.4 kW × 1 Output |
| Standard Connector Type | 3-Pin Industrial Socket, 3-Pin Modular Socket and Type 2 Gun |
| Charging Standard | IEC 60309 and IEC 62196-2 |
| Overall Efficiency | > 95% |
Protection & Safety
| Feature | Specification |
| Protections | Over-Voltage, Under-Voltage, Over-Current, Short-Circuit, Ungrounded, A-Type Earth Leakage Protection |
USER INTERFACE & CONTROLS
| Feature | Specification |
| Display | 20 × 4 Jumbo LCD with LED indicators |
| Language Support | English |
| Emergency Control | Red Emergency Stop Button |
| Status Indication | Input supply, charging, and error status |
| Network Communication | 4G/Wi-Fi |
| OCPP Support | OCPP 1.6 or above |
| User Authentication | Plug & Play, RFID and App based |
Mechanical & Environmental
| Feature | Specification |
| Ingress Protection Rating | IP54 |
| Cooling Method | Natural Air Cooling |
| Charging Cable | Not included (Socket-Based Charger) |
| Operating Temperature Range | –20°C to +55°C |
| Storage Temperature Range | –20°C to +55°C |
| Humidity | 5% to 95% RH (Non-Condensing) |
| Installation Altitude | Up to 2000 m above sea level |
Simple Installation Requirements
Power:
Install a 63 A 4-Pole Miniature Circuit Breaker (MCB) to provide power to the charger.
Wiring:
Use 10 sq. mm pure copper cable to safely handle the electrical load.
Earthing:
Proper earthing is mandatory to avoid electric shocks & hazards.
Note:
In areas with frequent or extreme voltage fluctuations, install a voltage stabilizer before the MCB for added protection.
At EVFAST, we stand behind the quality and reliability of our EV Chargers, to give you complete peace of mind.
EVFAST products come with a 1-year warranty against manufacturing defects.
Accessories & Add-ons:
These items are not covered under warranty.
Warranty Exclusions:
The warranty does not apply to damage caused by power surges, supply-side electrical faults, burnouts, improper installation or usage, accidents, physical damage, unauthorized repairs or modifications.
