3.3 KW Smart Socket
Category: AC Chargers
₹4,999
₹6,499 23% off
Inclusive of GST (5%)
Shipping charges extra
Sleek wall-mounted premium design
Tough and Long-Lasting
Emergency stop switch for safety
Excellent After-Sales Service

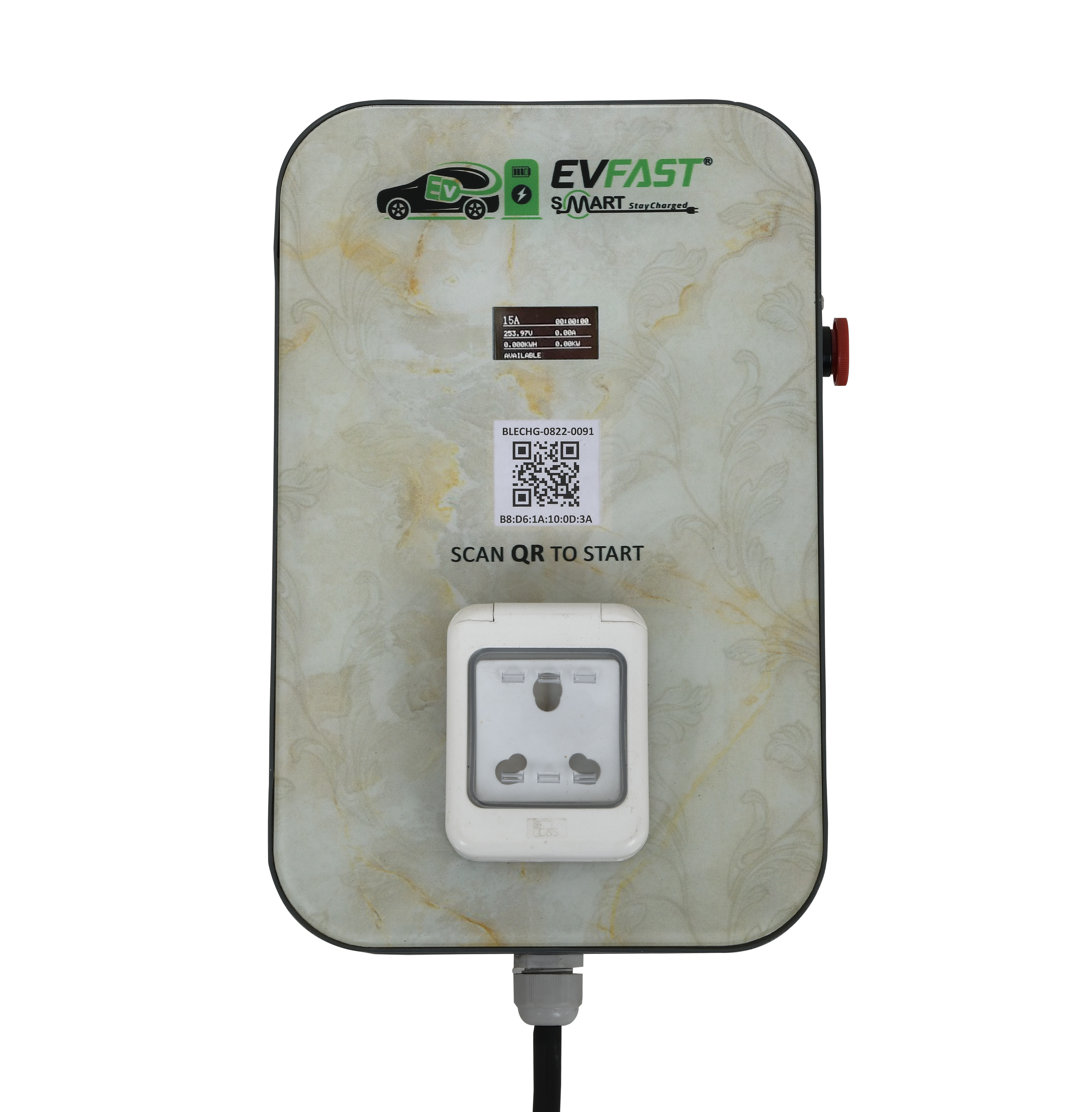

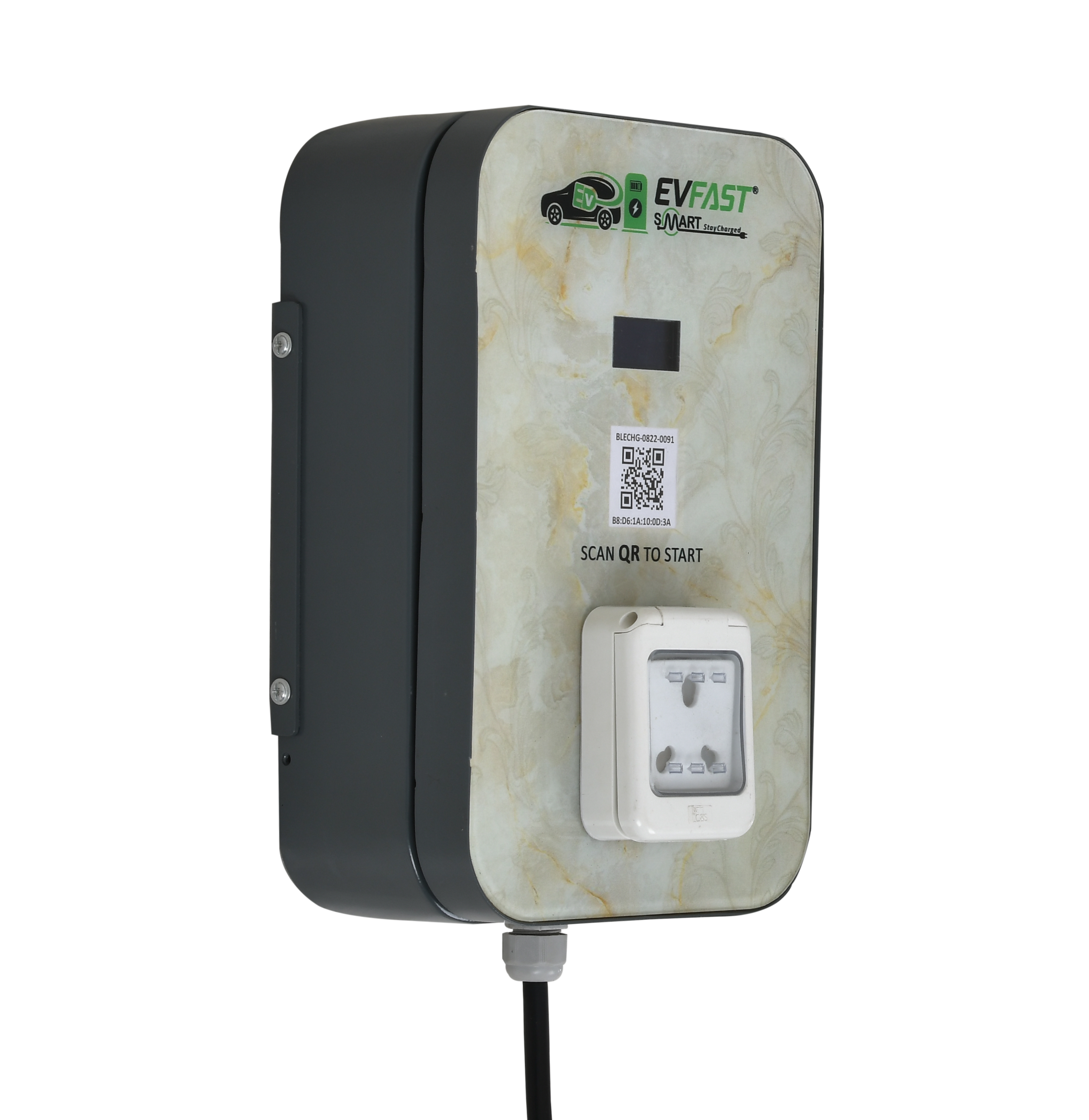

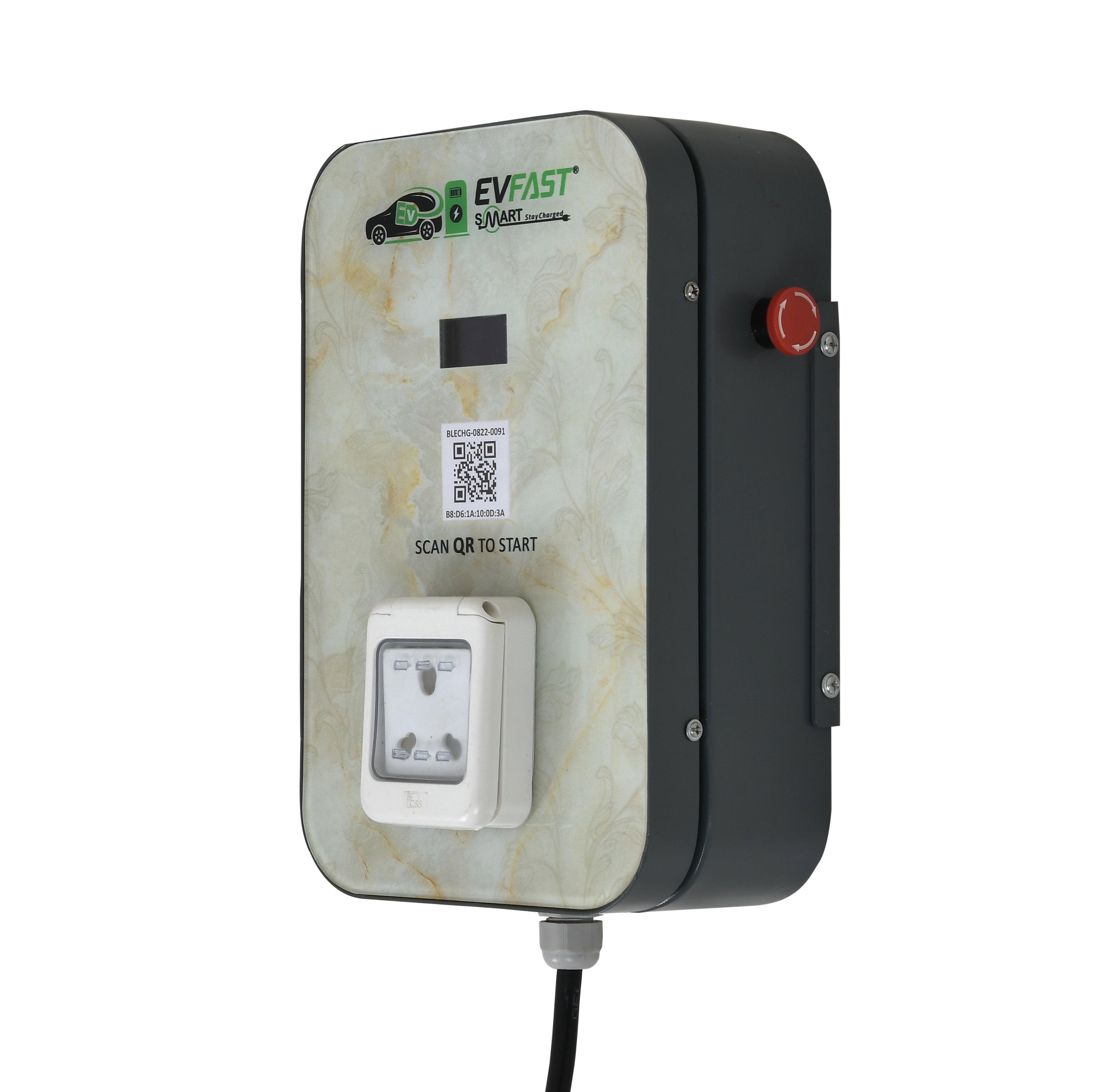

The 3.3 kW EVFASTAC EV Charger with 16A socket is a smart, efficient, and flexible charging solution designed for residential and light commercial EV charging applications. Equipped with OCPP compliance, the charger seamlessly integrates with centralized charging management systems, enabling remote monitoring, control, and data analytics.
Featuring a standard 16 Amp industrial socket, this charger supports plug-and-play charging using portable EV charging cables, offering maximum compatibility across a wide range of electric vehicles. Its compact wall-mounted design ensures easy installation while delivering stable and reliable AC charging performance.
| Feature | Specification |
| Model | EVFAST Smart AC Charger – OCPP Based |
| Rated Capacity | 3.3 kW |
| Input Supply | Single Phase AC |
| Input Voltage | AC 230 V ±15% |
| Input Frequency | 50 Hz |
| Wiring Configuration | 3 Wires – Line (L), Neutral (N) & Protective Earth (PE) |
| Output Voltage | AC 230 V ±15% |
| Charging Interface | 16A Universal / Industrial Socket |
| Charging Mode | AC Mode-2 / Mode-3 (as per vehicle & cable) |
| Energy Efficiency | >95% |
| User Authentication | QR Code / Mobile Application Based |
| Payment System | App Wallet Integration |
| Communication Protocol | OCPP 1.6 or higher |
| Network Connectivity | 2G / 3G / 4G |
| Display Interface | 1.3” OLED Screen or LED Indicators (Optional) |
| Control Interface | Emergency Stop Push Button |
| Safety Protections | Over-Voltage, Under-Voltage, Over-Current, Short-Circuit, Ungrounded, Reverse Connection |
| Ingress Protection Rating | IP54 |
| Operating Temperature Range | -20°C to +55°C |
| Mounting Type | Wall Mounted/Stand mounted |
| Enclosure Type | Robust, weather-resistant enclosure |
| Overall Dimensions (W × H × D) | 180 × 280 × 95 mm |
Simple Installation Requirements
Power:
Install a 20A 2-Pole Miniature Circuit Breaker (MCB)to provide power to the charger.
Wiring:
Use 2.5 sq. mm 3 Core pure copper cable to safely handle the electrical load.
Earthing:
Proper earthing is mandatory to avoid electric shocks & hazards.
Note:
In areas with frequent or extreme voltage fluctuations, install a voltage stabilizer before the MCB for added protection.
At EVFAST, we stand behind the quality and reliability of our EV Chargers, to give you complete peace of mind.
EVFAST products come with a 1-year warranty against manufacturing defects.
Accessories & Add-ons:
These items are not covered under warranty.
Warranty Exclusions:
The warranty does not apply to damage caused by power surges, supply-side electrical faults, burnouts, improper installation or usage, accidents, physical damage, unauthorized repairs or modifications.
