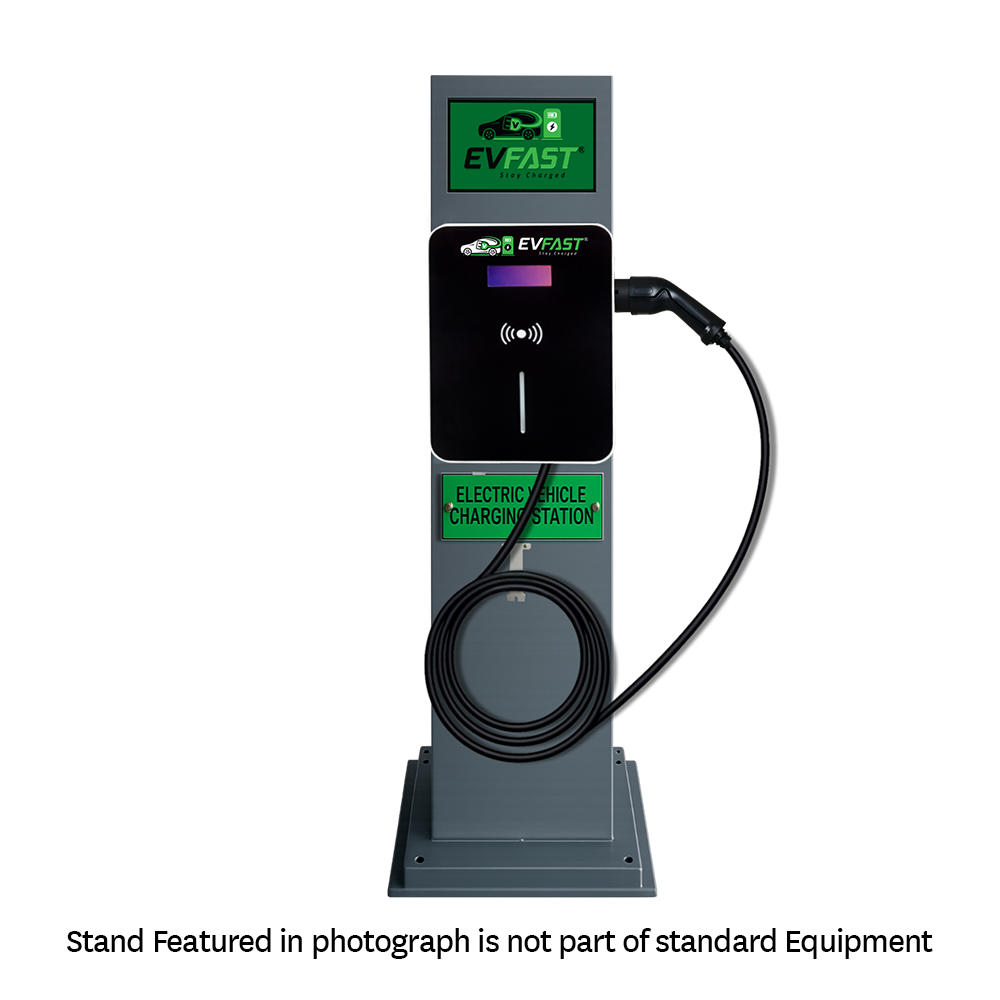

7.4 kW EV Charger ( Plug N Play /RFID)
Category: Popular Ev Car Charger
₹27,499
₹35,999 23% off
Inclusive of GST (5%)
Shipping charges extra
Sleek wall-mounted premium design
Tough and Long-Lasting
Emergency stop switch for safety
Excellent After-Sales Service
EVFAST is where refined design meets intelligent performance. This elegant 7.4kW
wall-mounted EV charger enhances your space while delivering a seamless charging experience. A built-in emergency stop switch and RCD ensures safety under unforeseen circumstances.
Choose how you charge with two modes—Plug & Charge, RFID.
INPUT PARAMETERS
| Specification | Details |
| Input Voltage: | AC 230V ±15% |
| Input Frequency: | 50 Hz ±1 Hz |
| Wiring: | 3-wire (L, N, PE) |
OUTPUT PARAMETERS
| Output Type: | Single Phase, Type 2 |
| Maximum Output Power: | 7.4kW |
| Output Voltage: | AC 230V ±15% |
| Connector Type: | AC Type 2(IEC 62196-2) |
| Number of Connectors: | Single gun |
| Efficiency: | ≥ 95% |
PROTECTION & SAFETY
| Over-voltage protection |
| Under-voltage protection |
| Over-current protection |
| Short-circuit protection |
| Ungrounded protection |
| A-type leakage protection |
USER INTERFACE & CONTROLS
| Specification | Details |
| Display: | 20 × 4 Jumbo LCD with LED indicators |
| Language Support: | English |
| Emergency Control: | Red Emergency Stop Button |
| Status Indication: | Input supply, charging, and error status |
| User Authentication: | Plug & Play, RFID |
MECHANICAL & ENVIRONMENTAL
| Specification | Details |
| Ingress Protection: | IP55 |
| Charging Cable Length: | 5 meters |
| Operating Temperature: | –20°C to +50°C |
| Dimensions (W × H × D): | 235 × 310 × 130 mm |
Simple Installation Requirements
Power:
Install a 40 A 2-PoleMiniature Circuit Breaker (MCB) to provide power to the charger.
Wiring:
Use a 3-core, 10 sq. mm pure copper cable to safely handle the electrical load.
Earthing:
Proper earthing is mandatory to avoid electric shocks & hazards.
Note:
In areas with frequent or extreme voltage fluctuations, install a voltage stabilizer before the MCB for added protection.
At EVFAST, we stand behind the quality and reliability of our EV Chargers, to give you complete peace of mind.
EVFAST products come with a 1-year warranty against manufacturing defects.
Accessories & Add-ons:
These items are not covered under warranty.
Warranty Exclusions:
The warranty does not apply to damage caused by power surges, supply-side electrical faults, burnouts, improper installation or usage, accidents, physical damage, unauthorized repairs or modifications.
Customer Support
📞Phone: +91 8595264742
🕘Hours: Monday to Saturday, 10:30 AM – 6:00 PM (IST)
