Bharat Ac 001 ( 10kW )
Category: AC Chargers
₹34,999
₹44,999 22% off
Inclusive of GST (5%)
Shipping charges extra
Sleek wall-mounted premium design
Tough and Long-Lasting
Emergency stop switch for safety
Excellent After-Sales Service

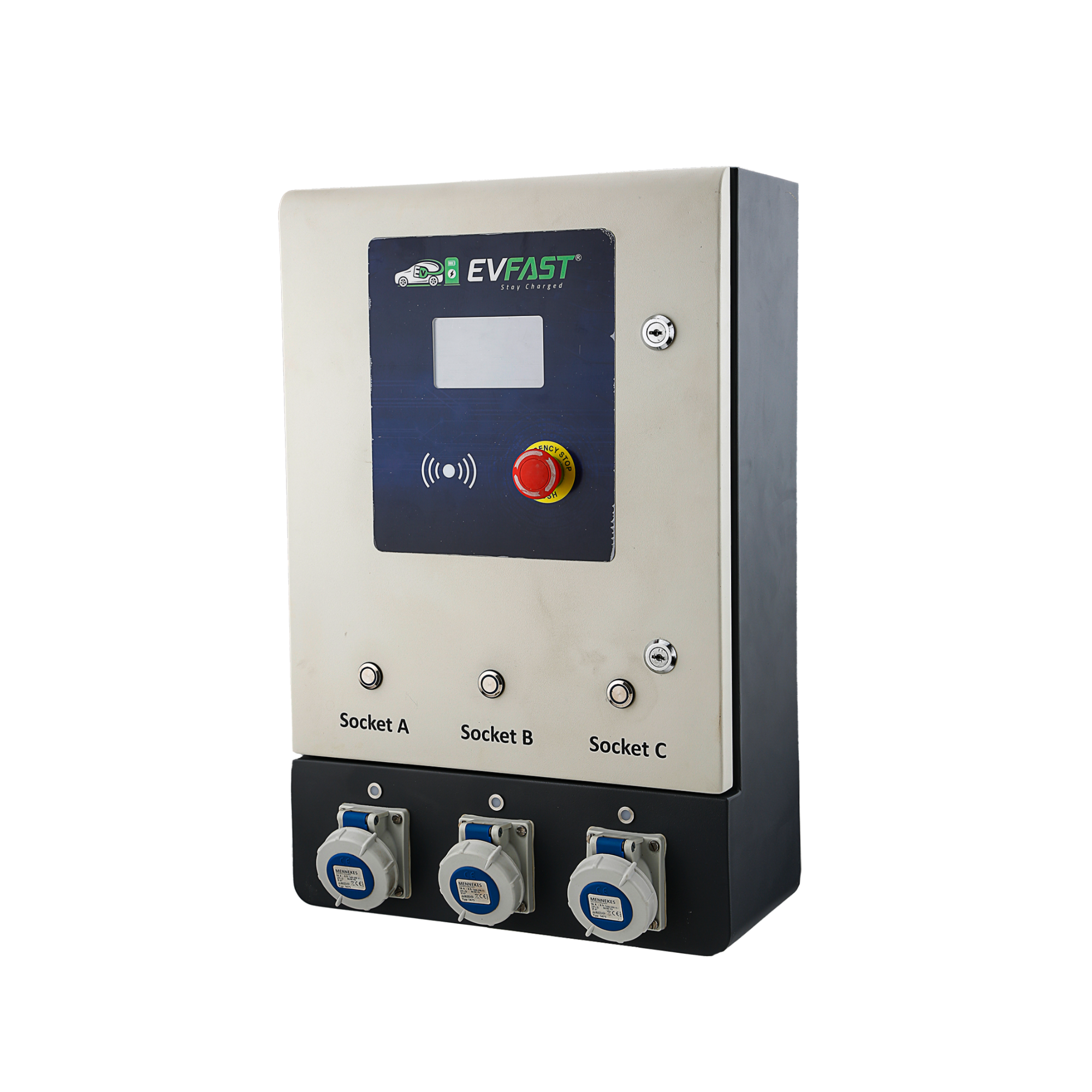

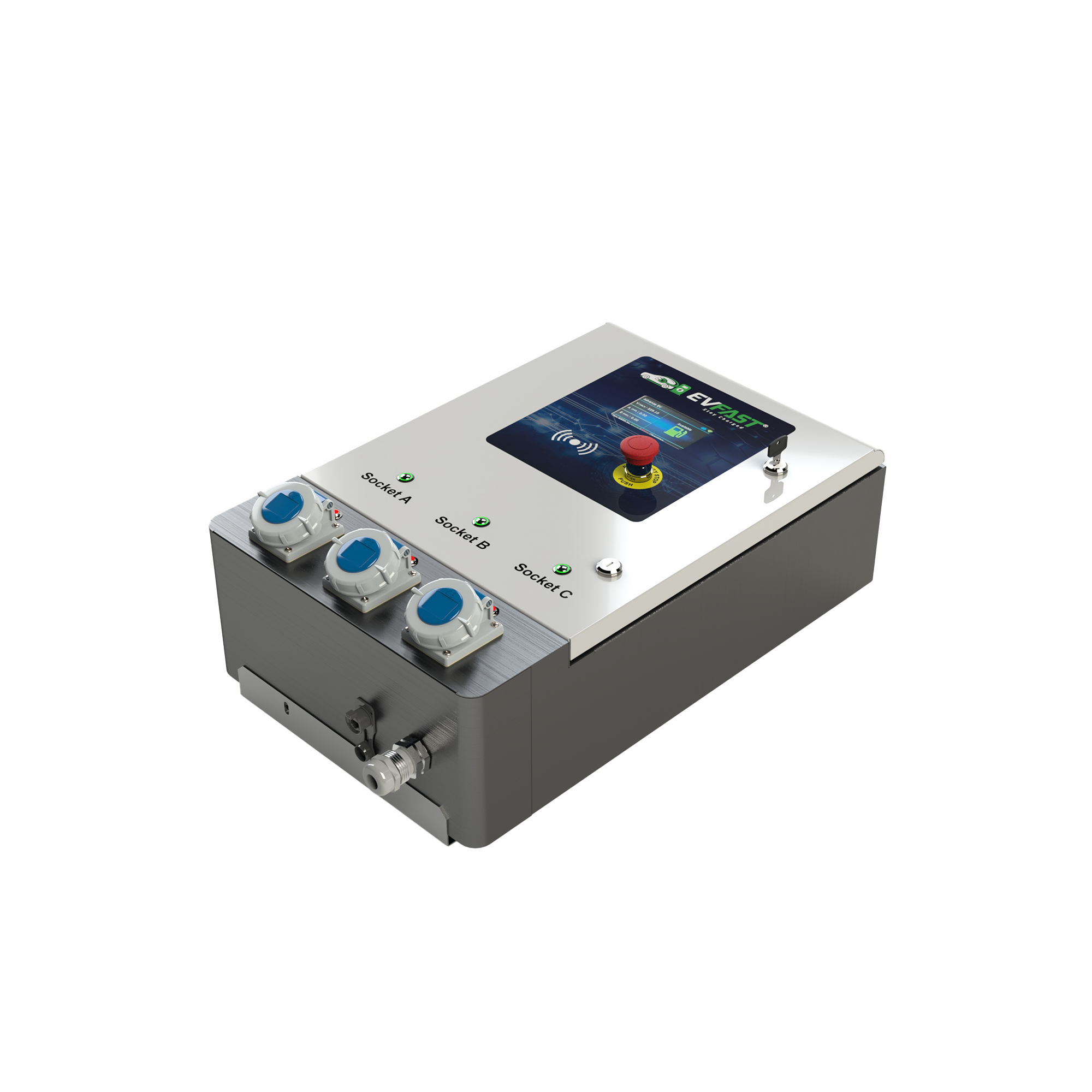

EVFAST BHARAT AC001 (ARAI APPROVED) 10kW AC EV Charger (3.3 kW × 3) is a smart, multi-output EV charging solution designed to charge up to three electric vehicles simultaneously. Each output delivers 3.3 kW AC power through industrial-grade sockets, ensuring reliable, safe, and flexible charging using portable EV charging cables.
Built on an OCPP-based architecture, the charger enables seamless integration with central management systems for remote monitoring, user authentication, energy management, and billing. This makes it ideal for public, commercial, residential, and fleet charging applications where scalability and smart control are essential.
General
| Feature | Specification |
| Model | EVFAST Bharat Charger AC 001 (ARAI APPROVED) |
| Rated Capacity | 10kW |
Input Parameters
| Feature | Specification |
| Input Supply | Three Phase AC |
| Input Voltage | 415 VAC (Operating Range: 380–440 Vac) |
| Input Frequency | 50 Hz ±1 Hz |
| Total Harmonic Distortion (THD) | ≤ 5% of nominal voltage |
| Power Factor | ≥ 0.99 at full load |
| Wiring Configuration | L1, L2, L3, Neutral (N), Protective Earth (PE) |
Output Parameters
| Feature | Specification |
| Output Voltage | 230 VAC ±15% per output |
| Number of Outputs / Connectors | 3 |
| Charging Power Distribution | 3.3 kW per output |
| Standard Connector Type | 3-Pin Female Industrial Connector |
| Charging Standard | IEC 60309 |
| Overall Efficiency | > 95% |
Protection & Safety
| Feature | Specification |
| Protections | Over-Voltage, Under-Voltage, Over-Current, Short-Circuit, Ungrounded, A-Type Earth Leakage Protection |
USER INTERFACE & CONTROLS
| Feature | Specification |
| Display | 20 × 4 Jumbo LCD with LED indicators |
| Language Support | English |
| Emergency Control | Red Emergency Stop Button |
| Status Indication | Input supply, charging, and error status |
| Network Communication | 4G/Wi-Fi |
| OCPP Support | OCPP 1.6 or above |
| User Authentication | Plug & Play, RFID and App based |
Mechanical & Environmental
| Feature | Specification |
| Ingress Protection Rating | IP54 |
| Cooling Method | Natural Air Cooling |
| Charging Cable | Not included (Socket-Based Charger) |
| Operating Temperature Range | –20°C to +55°C |
| Storage Temperature Range | –20°C to +55°C |
| Humidity | 5% to 95% RH (Non-Condensing) |
| Installation Altitude | Up to 2000 m above sea level |
| Dimensions (W × H × D) | 400 × 620 × 190 mm |
Simple Installation Requirements
Power:
Install a 32 A 4-Pole Miniature Circuit Breaker (MCB) to provide power to the charger.
Wiring:
Use 6 sq. mm pure copper cable to safely handle the electrical load.
Earthing:
Proper earthing is mandatory to avoid electric shocks & hazards.
Note:
In areas with frequent or extreme voltage fluctuations, install a voltage stabilizer before the MCB for added protection.
At EVFAST, we stand behind the quality and reliability of our EV Chargers, to give you complete peace of mind.
EVFAST products come with a 1-year warranty against manufacturing defects.
Accessories & Add-ons:
These items are not covered under warranty.
Warranty Exclusions:
The warranty does not apply to damage caused by power surges, supply-side electrical faults, burnouts, improper installation or usage, accidents, physical damage, unauthorized repairs or modifications.
